Introduction
In archive-room procurement, public tendering and overseas project delivery, smart compactor shelving specifications are the dividing line between equipment that passes acceptance and equipment that fails within 1–3 years. This guide consolidates the complete checklist — dimensions, steel plate thickness, load ratings, anti-corrosion processes, motor and control parameters, safety configuration and damp-proof grades — formatted so procurement teams can copy the tables straight into tender documents. As the finale of our series — floor load surveying → price factors → damp-proof configuration → O&M maintenance — it closes the loop from early surveying to long-term operation. For the wider system context, start with our overview of what a smart compactor shelving system is.
Dimension-annotated intelligent mobile shelving — height, width, depth and rail layout per standard modules.
1. The 8 Core Parameter Systems at a Glance
A compliant, durable, acceptance-ready system must satisfy 8 core parameter systems simultaneously — these are also the assessment items every smart compactor shelving specifications sheet is audited against in domestic tenders and overseas project reviews:
- Dimensional parameters — height, width, depth, layer pitch, module standards
- Steel material parameters — GB cold rolled steel, plate thickness per component
- Load parameters — per-shelf static load, whole-bay load, long-term deformation limits
- Anti-corrosion parameters — phosphating, powder coating thickness, curing temperature, salt-spray grade
- Mechanical travel parameters — rail specs, wheel material, travel speed, noise limits
- Electrical & smart parameters — motor power, voltage adaptation, control system, display
- Safety parameters — anti-pinch, anti-collision, limit, overload and leakage protection
- Environment parameters — damp-proof grade, anti-rust grade, temperature/humidity range
2. Dimensions & Specification Standards
Smart compactor shelving follows an industry-standard module — structurally regular and highly adaptable — while supporting non-standard customization. The dimension block of smart compactor shelving specifications covers: for different room heights, floor areas and storage needs.
Standard dimensions: overall height 2300 mm (customizable 2000–2600 mm); single cabinet width 900/1000 mm standard modules; cabinet depth 500/550/600 mm — 550 mm being the mainstream choice for domestic and overseas archive rooms; 6 shelves standard, adjustable in number with movable shelf boards; infinitely adjustable layer pitch to fit case files, vouchers, drawings, contracts and HR records.
The structural block of smart compactor shelving specifications covers build geometry: square and stable frames with verticality error ≤3 mm and levelness error ≤2 mm; uniform, even gaps when bays are closed — no skew, warping or deformation; sealing performance up to standard to guarantee damp-proofing and dust protection.
3. Steel Material & Plate Thickness Tender Parameters
Plate thickness is the hardest indicator in any smart compactor shelving specifications sheet separating high-spec from low-spec equipment — and a mandatory parameter in tender documents. All equipment uses GB-quality SPCC cold rolled steel; recycled plate, hot-rolled plate and under-thickness sheet are strictly excluded. For the full substrate and coating logic behind these numbers, see our cold rolled steel thickness & powder coating durability guide.
- Uprights: 1.5 mm
- Shelves & dividers: 1.2 mm
- Top / side / door panels: 1.0 mm
- Base chassis: 2.0 mm thickened, fully welded
Within smart compactor shelving specifications, the 2.0 mm thickened base is the foundation for no deformation under long-term full load, no rail drift and no wobble. Adequate upright and shelf thickness eliminates bending, sagging and toppling archives under sustained pressure. Most low-price equipment shaves 0.2–0.3 mm off the plates to cut cost — and shows visible deformation and loosening within 2–3 years, failing project acceptance.
Component-level annotations: plate thickness, adjustable layer spacing, shelf load rating and base rail height.
4. Load Capacity & Whole-Bay Load Standards
The load block of smart compactor shelving specifications must match the archive room's floor capacity — see our floor load bearing requirements for compactor shelving before finalizing any layout. Standard static load per shelf: ≥80 kg (uniform full load, long-term static storage, no deformation); heavy-duty option: ≥120 kg for financial vouchers, physical archives and dense stacking. Whole-bay load must be uniformly distributed — no single-point overload; under uniform full load the frame must show no tilting, no jamming and no base settlement.
5. Anti-Corrosion & Damp-Proof Process Parameters
The anti-corrosion block of smart compactor shelving specifications is standardized for high-humidity, salt-fog and rainy overseas climates — Southeast Asia, coastal and island projects — meeting strict overseas acceptance requirements.
Pretreatment (6 full stages): degreasing → water rinse → pickling → water rinse → phosphating → purified-water rinse, thoroughly removing oil, oxide scale and rust, and forming a dense phosphate film that seals the steel's capillary pores.
Coating parameters: high-grade epoxy-resin electrostatic powder; film thickness 60–80 μm, uniform with no dead zones; cured at 180 °C; adhesion grade 1 — no peeling, no flaking, scratch- and moisture-resistant.
Salt-spray grades (the climate-critical line of smart compactor shelving specifications): standard version — 300 h salt-spray test with no rust, flaking or blistering, for inland dry regions; coastal reinforced version — 800 h salt-spray test, engineered for coastal, island and high-salt-fog overseas projects.
6. Motor & Smart Control System Parameters
The electrical block of smart compactor shelving specifications determines fault rate, operating stability and service life. Motor: dedicated silent gear motor with stable power, low temperature rise and strong overload capacity; smooth uniform start/stop with no impact, no sudden stops, no sway — protecting the archives; 220 V standard voltage / 110 V overseas-specific voltage to fit global power standards.
Control system: HD smart LCD display with Chinese/English switching for overseas operation and acceptance; manual, electric and PC-remote tri-mode control with high fault tolerance; zone-independent control, one-touch open/close and whole-group linkage for archive rooms of any scale; real-time temperature and humidity monitoring with automatic data logging and threshold alerts; linkable to industrial dehumidifiers and ventilation systems for unattended constant-humidity control.

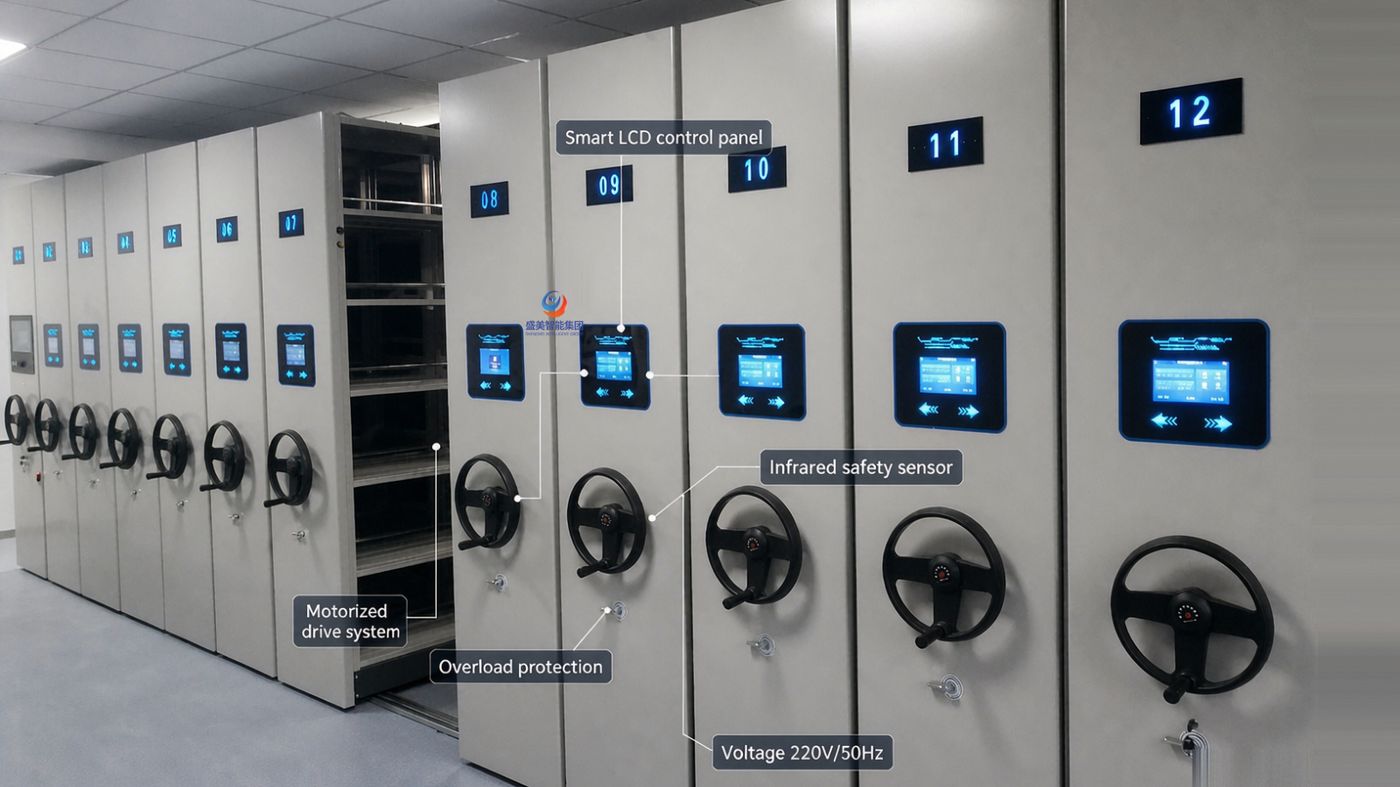

Electrical and smart system annotations: LCD panel, infrared sensor, motorized drive, overload protection and voltage rating.
7. Safety Protection System Standard Parameters
The safety block of smart compactor shelving specifications contains hard acceptance indicators for archive rooms and the focus of overseas audits and warranty checks. Full standard configuration, all models:
- Infrared anti-pinch protection — high-precision sensing; instant emergency stop on detecting people or obstacles
- Mechanical hard travel limits — electronic + mechanical dual protection against overtravel and derailment
- Motor overload protection — automatic power-off on excess load, protecting motor, drive and frame
- Leakage protection — instant trip on circuit faults, securing room electrical safety
- Braking self-lock — immediate locking on stop; no sliding, no gap misalignment
- Smart lighting — auto on when bays open, auto off when closed
Map these against your jurisdiction's codes with our compactor shelving safety architecture framework.
8. Scenario Selection Comparison Table (Tender-Ready)
| Scenario | Plate configuration | Load standard | Anti-corrosion grade | Smart configuration |
|---|---|---|---|---|
| Inland standard archive room | Full standard thickness set | 80 kg per shelf | Standard 300 h salt spray | Basic electric + LCD control |
| Southern humid climate room | Full standard thickness set | 80 kg per shelf | Reinforced damp-proof & anti-rust | T&H monitoring + auto ventilation loop |
| Coastal / island overseas project | Thickened base chassis | Optional 120 kg heavy duty | 800 h high salt-spray grade | Bilingual OS + waterproof electrics + dehumidifier linkage |
| Voucher / heavy case-file room | Reinforced shelf configuration | 120 kg per shelf heavy duty | 300 h / 800 h optional | Heavy-duty motor + reinforced drive train |
Copy this table directly into tender documents; adjust climate and load columns to project conditions.
9. Four Common Procurement Mistakes
Mistake 1 — judging by appearance without specifying plate thickness. Paint hides thin plate; low-price units commonly shave 0.2–0.3 mm and deform within years. Lock per-component thickness into contracts and tenders — the single most enforced item in smart compactor shelving specifications.
Mistake 2 — trusting load labels without deformation standards. Many vendors inflate load figures with no test basis. Compliant parameters must include full-load deflection limits and elastic-recovery acceptance criteria.
Mistake 3 — not upgrading anti-corrosion for humid or coastal sites. 300 h units show rust spots and blistering within 1–2 years in salt-fog environments; always specify the 800 h reinforced process.
Mistake 4 — ignoring overseas voltage and language adaptation. Confirm local power standards and operating language in your smart compactor shelving specifications before shipment — otherwise units arrive unusable, triggering rework, extra cost and delivery delays. More traps are covered in our 7 common pitfalls in compact shelving procurement.
10. High-Frequency Procurement FAQ
Plate thickness, per-shelf load rating, base chassis thickness, anti-corrosion process and the safety protection system. These five directly determine service life and acceptance pass rate — mandatory fields in tender documents.
Fully sufficient for standard documents, contracts and HR records. For financial vouchers, heavy case files and dense stacking, choose the 120 kg heavy-duty version to eliminate long-term compression deformation.
For foreign-government projects, international schools and multinational archive rooms, a Chinese-English bilingual operating system is recommended as standard — fitting overseas operators and satisfying acceptance norms.
Decisive. 300 h fits inland dry regions only. The 800 h high-resistance version is engineered for coastal, island and Southeast-Asian climates — 15+ years stable service without rust or flaking.
Yes. The full parameter set follows industry tender standards and compliance requirements — copy, fine-tune and use for bid documents, contract clauses and technical benchmarking.
11. Conclusion
Quality stability, service life and acceptance compliance all rest on standardized, transparent, executable parameters. Vague parameters, low-spec equipment and inflated configuration claims remain the biggest hidden risks in archive procurement. As the finale of the smart compactor shelving series, this guide links floor load surveying → price analysis → damp-proof adaptation → O&M maintenance → standardized selection into one complete overseas procurement knowledge system. Procurement teams can apply this smart compactor shelving specifications checklist to benchmark products, write tenders and lock contract standards — eliminating cut corners, premature aging, failed acceptance and high fault rates at the source.
Need a full tender parameter pack, overseas technical bid documents, custom parameters or a project budget? Shengmei Cabinet provides one-stop equipment and technical support for archive rooms worldwide.
